Description

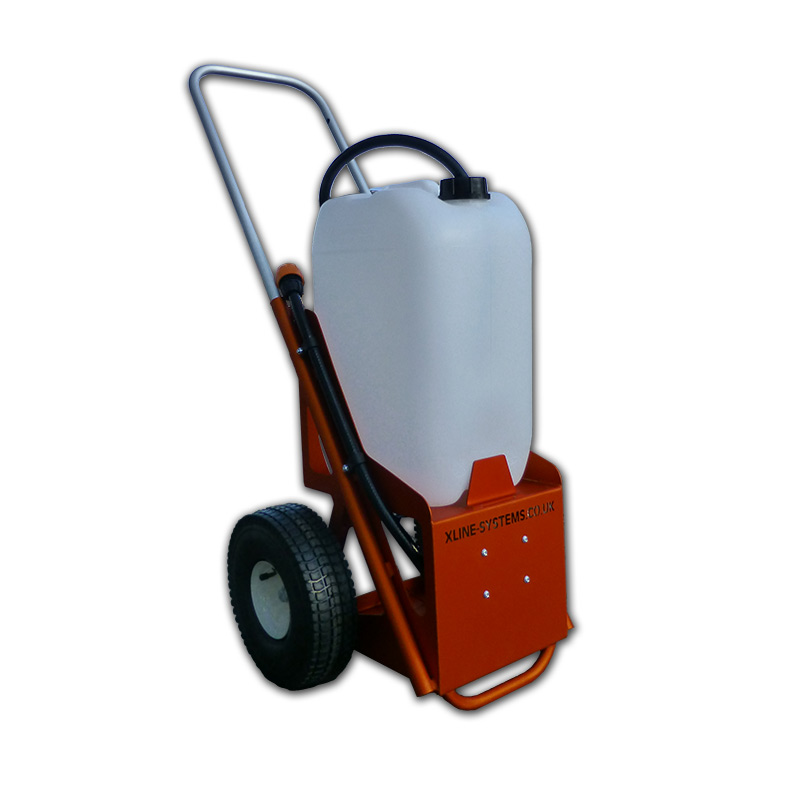

The ultimate portable 25ltr waterfed trolley system from Xline-Systems.

Product Weight: 17.75kg (Dry Weight)

Width including Wheels 460mm, Height with collapsed handle without 25ltr Drum 610mm, Height Including 25ltr Drum 750mm, Height with fully extended Handle 950mm, Depth 400mm

Battery Capacity: 22amp/hr (Will last a full days usage)

Water Capacity: 25ltr (15 minutes constant use until empty)

The Xline portable window cleaning trolley system has been designed to the highest of specification and outstanding build quality. Fully constructed of non corrosive strong Aluminium makes this trolley one of the lightest window cleaning trolleys available on the market.

This 25 litre trolley is ideal for people just starting out in the industry, or for existing traditional window cleaners who want to convert over to water fed pole. We find that with a lot of our customers, as their business starts to expand they look to use the trolley system as a delivery system situated within their vans, by simply hooking up the trolley to a larger baffled tank.

The trolley comes anodised in a choice of colours (orange or blue), this reduces the chance of staining, abrasion, crazing and colour degradation. The trolley will not rust or corrode over time. It has three different handle settings to accommodate the tallest of operators and will collapse down to knee height making it easy to store and transport in a vehicle.

With heavy duty pneumatic wheels and a counter balanced design makes this trolley easy to maneuver over the most uneven surfaces (from steps to gravel). The Xline trolley features a removable battery case making the deep cycle battery easy to charge, with the intelligent battery charger designed to shut off when fully charged, helping to maintain the battery lifespan.

A digital control unit with 100 different flow settings controlling flow rates up to 5.2 litres per minute, a voltage display showing battery life and adjustable pressure settings making it easy to set for individual operators requirements.

The trolley is also available with a 10mtr hose extension kit, allowing you to work at a greater distance from the trolley itself. You also have the option of upgrading the standard flow controller to a radio (1 button or 3 button) remote controlled unit.

A number of different quick connectors are available with the trolley system. As standard we supply the trolley with a 1/2″ female hozelock tap connector, but we can also supply it with more heavy duty steel twist lock connectors.

The Xline WFP trolley system has been tried and tested Worldwide and will accommodate any pole available with heights over 80ft.

Features:

• Pneumatic tyres (also available with puncture proof wheels)
• Light weight anti corrosion Aluminium construction
• Three Handle height settings
• Anodized finish
• Intelligent battery charger
• Stainless Feet to reduce wear
• Removeable Battery Pack for ease when charging
• Compact enough to fit in the boot of a small car
• 26amp rechargeable battery will easily last a full working day on one charge
• Caster wheels on the handle for easy loading into a vehicle
• 100 psi Water delivery pump capable of pumping 5ltrs of water per minute (available with chemical pump for soft washing and chemical spraying)
• Variable digital flow control with built in pump protection allowing you to adjust the flow rate of the pump.
• Voltage display
• 25 ltr capacity
• Compatible with all water fed poles up to 80ft
• Same spec as van mounted systems

^This video shows an older version of our 25ltr trolley. The updated version we now supply has an improved smaller battery box and a more advanced pump controller. We also supply the trolley as standard with a hozelock style connector, the twist lock connectors shown in the video are an optional extra.
