Description

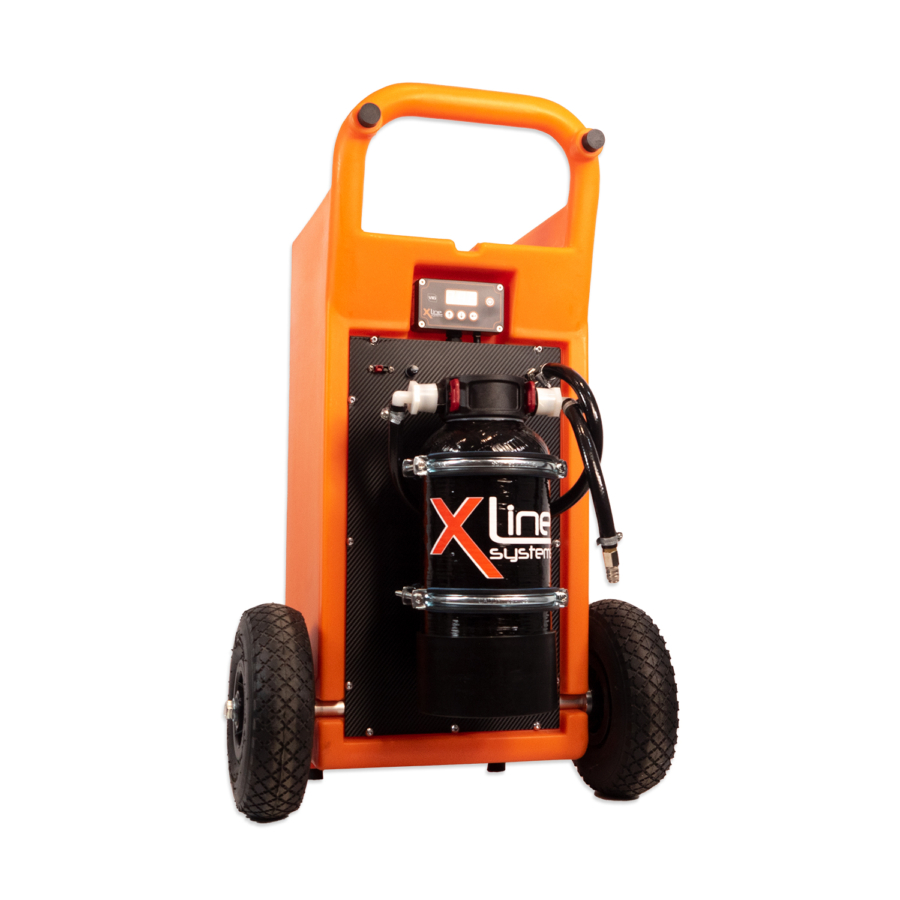

Fill the 45 litre X-trolley with water straight from your tap, it will pump the water through the 4ltr D/I resin vessel to purify the water. You are then able to connect your water fed pole and start cleaning, windows, cars, soffits, facias.

This system is aimed at people who live in a soft water area or for low usage in a hard water area.

Features & Components:

• 45 Litre Maximum Capacity
• 4 Litre Black Premium Resin Vessel with Quick Release Ports
• 12v 100psi Xline Pump
• Heavy Duty Wheels
• Medium Density Polymer Plastic Moulded Housing/Frame
• 20amp/hr Deep Cycle AGM Battery
• Rubber Feet
• Carry/Lifting Handle
• Advanced Digital Flow Controller
• Screw on Lid with 1 Way Breather Valve
• 12v Charging Port
• Rectus 21 Quick Connector Port
• Fuse Port
• Battery Voltage Meter
• Intelligent Battery Charger

Dimensions = 900mm H x 520mm W x 400mm D

Weight = 20kg

Optional Extra’s:

• Remote Controller Upgrade
• Castor Wheels (for when stored on back)

The 45 litre water fed trolley has been designed to give the user more water capacity while maintaining a compact overall size similar to the size of conventional fabricated 25tr systems. This has been achieved by integrating the components in a compact way allowing as much water capacity as possible in the overall dimensions of the trolley.

The trolleys dry weight including battery is just under 21kg making it light enough to lift in and out of a vehicle utilising the lifting handle located on the front, there are two casters on the handle to help when loading the trolley.

The trolley has a water tight lid designed with a breathable one way valve allowing you to use the unit without creating any vacuum, this lid also allows the user to lie the unit down in the boot of a small car when transporting.

The trolley has been constructed of a lightweight and durable medium density polyethylene that will not corrode and will stay looking nice overtime, the portable trolley system has heavy duty 10” pneumatic wheels with a roller bearing, this makes it very easy to manoeuvre up and down steps and curbs and uneven ground such as gravel. With its 20Amp hour AGM battery easily provides enough power for the full working day which can be recharged with the intelligent battery charger that is provided with the system, there is an Anderson 12v power connecter that is located on the rear plate for easy access.

The unit has a rectus 21 series female quick release fitting mounted to the rear plate that allows you to interchange different poles quickly and easily, there is also a built in stop valve that will prevent any water spillage when the water fed pole has been disconnected.

All functions on this portable window cleaning trolley are operated by a digital control panel that allows you to turn the machine on and off and allows you to regulate the flow of the water delivered up the water fed pole by the pump with different flow settings from 0 to 99. The pump provided produces 100 psi with a maximum flow rate of 5 litres per minute. There is a battery voltage meter within the unit along with a pressure sensitivity setting allowing you to regulate the shutoff pressure of the pump when the water supply has been cut off.

Filling the unit couldn’t be easier with its self filling clever design feature, the lid of the trolley is recessed into the tank allowing you to flip over a 25ltr drum of pure water that then sits snug into the top of the trolley allowing you to remove your hands and let the water decant into the unit by itself.
