Description

Pack contains

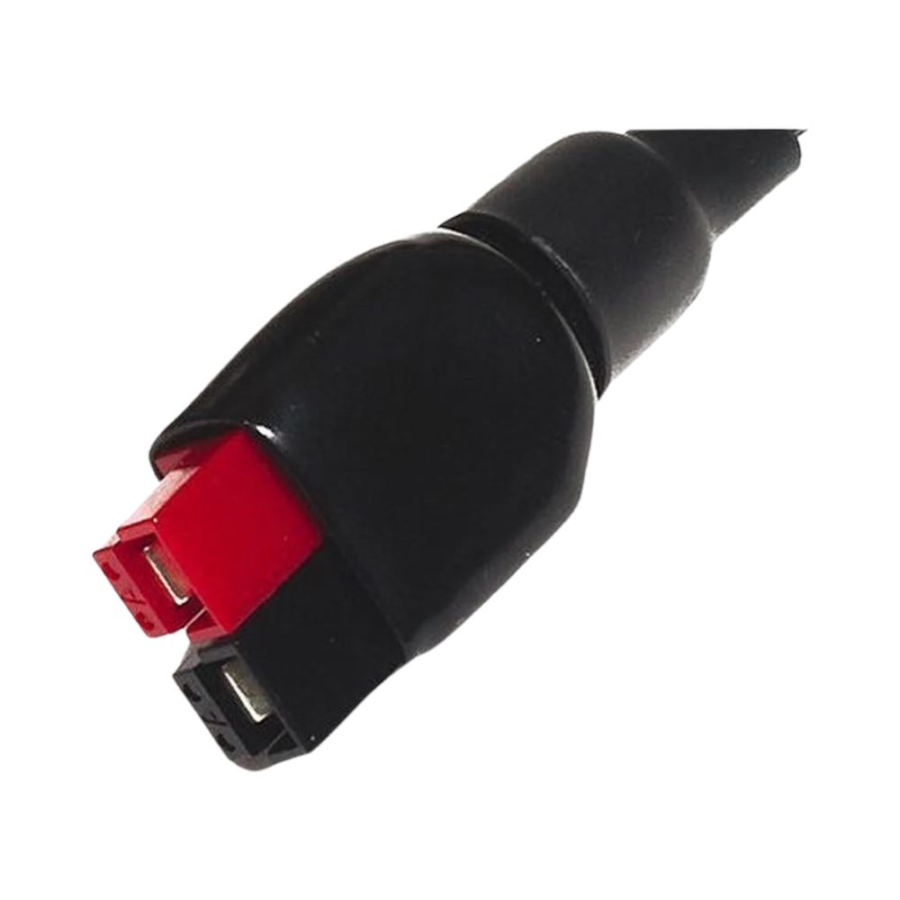

• 1 red powerpole housing
• 1 black powerpole housing
• 2 x powerpole silver plated connectors
• 1 x polymer protective sleeve

• PP120 series Powerpole^® housings are designed to accommodate up to 1/0 (50 mm²) wires and handle high currents up to 240 amps. Reducing bushings allow PP120 to accept down to #8 (10 mm²) wires. Multiple colors of stackable housings combine with low resistance flat wiping technology to offer powerful connection capability.
• Large Wire Range Accommodates up to 1/0 (50mm²) Wire Reducing bushings allow as small as #8 (10 mm²) wire to be used
• Low Resistance Silver Plated Copper Contacts Allows currents up to 240 amps
• UL Rated for Hot Plugging up to 60 Amps Great for battery or other applications where the ability to interrupt circuits is required
• PP120 Silver Plated Wire Contacts
• Silver plated contacts offer superior electrical performance and durability up to 10,000 mating cycles. New contacts for #1 to 1/0 AWG (35 to 50 mm²) offer extended capability in the same housings. See reducing bushings in accessory section for smaller wires.
• Flexible rubber protective sleeve

Used with pre 2023 45 ltr trolley systems and All 25 ltr trolley systems
