Description

Relay Install Kit

Top quality Professional Heavy Duty relay kit comes with everything required to charge auxiliary batteries that are used to run your window cleaning systems

The voltage sense relay simply detects the rise in voltage from you vehicles charging system when it exceeds 13.3v to allow you to charge your leisure battery(s) while your engine is running. When your engine is switched off and the battery voltage drops below 12.65v the relay will isolate your leisure battery(s) from your main starter battery so it does not drain your main starter battery and you will always be able to start your vehicle.

All of the range of 140amp voltage sensitive relays are dual sensing meaning that if a charging voltage like through a mains charger or solar panel is applied to the leisure battery that exceeds the relay activation voltage of 13.3v it will activate the relay to allow this charging device to also maintain the starter battery.

Additional Information

• Relay activation voltage 13.3v
• Relay isolation Voltage 12.8v
• Dual sense operation

Voltage sense systems are especially suited for modern vehicles as this type of system does not need an ignition feed or any additional wiring into your vehicle but for modern Intelligent smart charging vehicles with Euro cat 5/6 engines you will need to use a DC to DC charger.

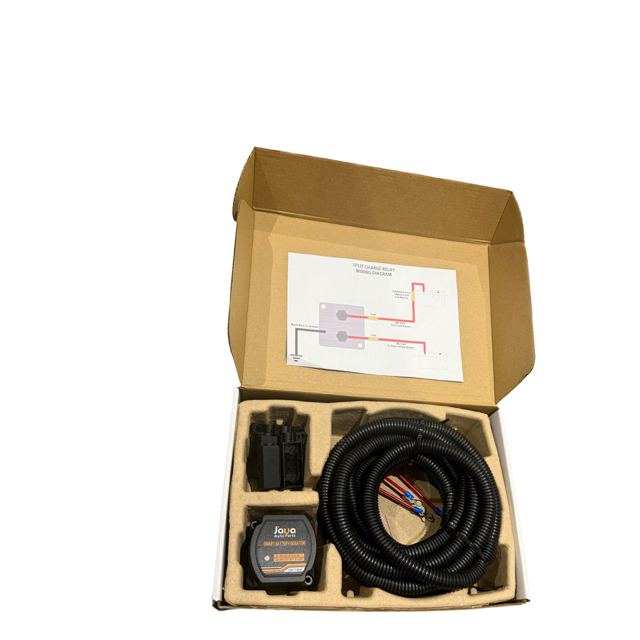

Kit  comes complete with

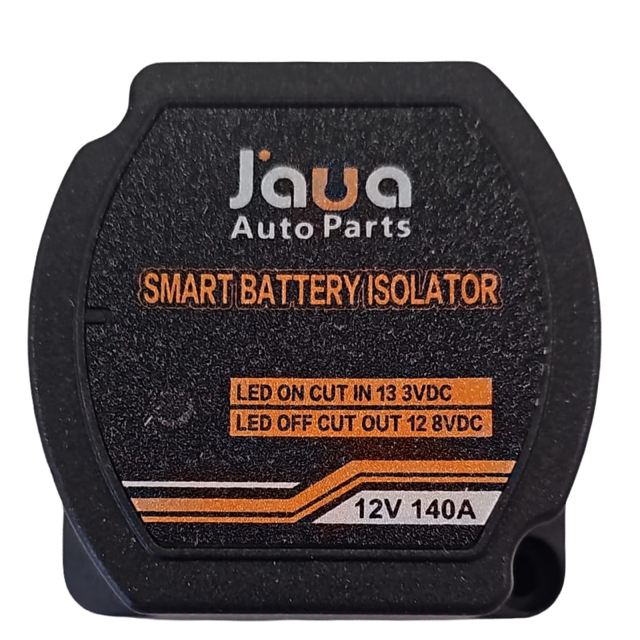

• 12v 140amp Voltage Sense Split Charge Relay
• 5 Mtr red 6mm 50 amp cable
• 5 Mtr black 6mm 50 amp cable
• 5 Mtr 16mm Conduit
• 3 x Fuse holders with 40 amp strip fuses
• Crimping terminals to connect everything together
• installation instructions
