Description

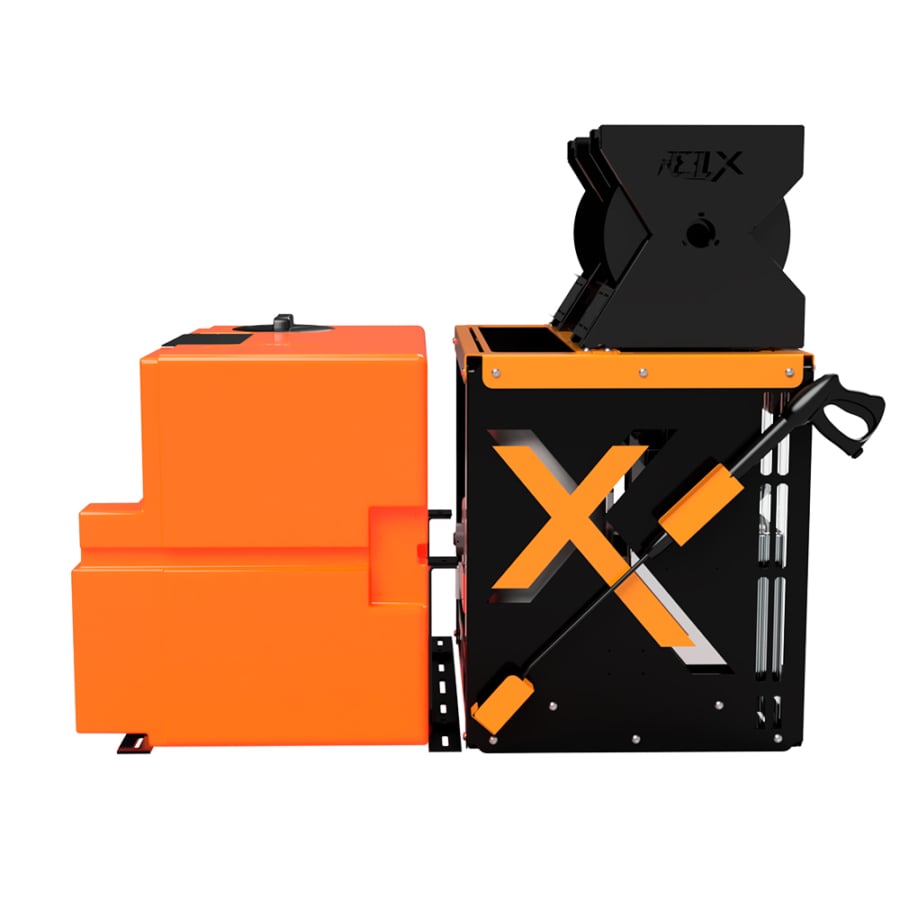

X Skid Modular High-Pressure Cleaning System

Power. Performance. Precision.

The XLINE X Skid Pressure Washer System Package delivers unmatched flexibility and performance for professional exterior cleaning businesses.
Whether you’re cleaning flat surfaces with high-pressure lances, washing building façades and roofs with telescopic poles, or performing drone-assisted high-pressure cleaning for hard-to-reach areas — the X Skid adapts seamlessly to every task.

Built for power, reliability, and future expandability, this system is ideal for contractors who demand professional results in every clean.

⚙️ Ready-Built Package for Immediate Use

The X Skid Package 1 arrives fully assembled and ready to install, complete with a full fixing kit for quick setup. Designed for bolt-on installation directly into your vehicle or trailer, this all-in-one skid and tank system combines industrial power with smart design.

Its modular, future-proof frame allows you to expand later with bolt-on systems — such as:

• 🧴 Chemical Softwash Modules

• 💧 Pure-Water Filtration Systems (The Contractor)

• 🧽 Drone or façade cleaning attachments

Enjoy full control from a centralised operator panel while keeping your setup neat, efficient, and compact.

🧱 Compact, Powerful & Efficient

• Width: 1100 mm – fits perfectly between standard vehicle wheel arches.

• Tank Sizes: Choose from 350 L, 500 L, 650 L, 800 L, or 1000 L.

• Optional Diesel Boiler: For hot water cleaning exceeding 100°C.

• Manual Filling Reel: 50 m of ½” filling hose with automatic tank shut-off.

• Manual High-Pressure Reel: 50 m of 3/8” high-pressure hose for efficient operation.

This compact system packs high-end performance into a mobile, space-saving footprint, perfect for professionals on the move.

🚀 Engine, Pump & Boiler Highlights

• Engine: JCB 457cc Petrol (15 HP, 4-Stroke).

• Start System: Electric key start for instant ignition.

• Fuel Tank: 6.5 L integrated tank (50 L diesel fuel tank for boiler option).

• Flow Rate: Adjustable up to 15 L/min.

• Pressure: Up to 250 Bar.

• Battery: 110 Ah self-contained battery with charging port and charger.

• Temperature Control: Digital thermostat capable of exceeding 100°C (boiler option).

• Fuel Gauge: Digital display for quick monitoring (boiler option).

Designed for rugged reliability and professional performance, the X Skid delivers consistent power — even under demanding conditions.

🎛️ Integrated Control Panel

All operations are managed from a single, centralised control panel featuring:

• 🔋 Battery voltage display with USB charging port.

• ⏱️ Engine hour run counter for maintenance tracking.

• ⚙️ Pressure gauge display for live system readings.

• 🌡️ Digital temperature control and start/stop (boiler option).

• ⛽ Digital fuel gauge for boiler monitoring.

• 💡 Integrated work lighting for day and night operation.

This intuitive interface puts complete control in the operator’s hands.

🧰 X Skid Design & Build Quality

Every X Skid system is built to endure professional use with the highest quality materials and thoughtful engineering:

• 🧱 Durable powder-coated steel construction.

• 🔇 Anti-vibration engine mounts for quiet operation and longer life.

• 🚿 Integrated lance holder for neat storage.

• 🧩 Modular baffled water tank with adjustable fixing kit to fit all vehicles.

• 💧 Water level sight glass for instant visibility.

• 🧯 Automatic water tank shut-off prevents overfilling.

• 🚜 Forklift-ready skid base for easy loading and installation.

• 🧳 Preassembled and ready-to-install with complete fixing kit.

Built for performance, durability, and easy transport, this system is the perfect base for your professional cleaning setup.

🌟 Why Choose the X Skid Package 1?

• ✅ Futureproof & Modular: Expand easily with add-on cleaning modules.

• ⚙️ Versatile: Suitable for ground, elevated, and drone-based cleaning.

• 🚐 Compact & Mobile: Fits most vans and trailers.

• 💧 Ready-to-Use: Fully assembled with all hoses, reels, and fittings.

• 🔥 Powerful Performance: Optional diesel boiler for high-temperature cleaning.

• 🔋 Independent System: Self-powered with its own fuel and battery supply.

The X Skid Package 1 is designed to grow with your business — combining professional-grade performance with long-term flexibility.

📋 Technical Specifications

📄 Downloadable Technical Datasheet (PDF available upon request).

❓ Frequently Asked Questions (FAQs)

1. What vehicles can the X Skid Package 1 fit into?
The compact 1100 mm width allows it to fit easily between standard van wheel arches and into most trailers, making it ideal for mobile setups.

2. Can I use this system for hot water cleaning?
Yes! The optional diesel boiler can heat water beyond 100°C, perfect for removing oil, grease, and stubborn dirt from hard surfaces.

3. How easy is it to install the system?
The system is fully preassembled and includes a complete fixing kit and forklift access points for simple bolt-on installation into your vehicle or trailer.

4. Can I expand the system later?
Absolutely. The modular design allows easy expansion with softwash systems, pure-water filtration modules, or other cleaning accessories — all controlled centrally.

5. What hoses and reels are included?
You’ll receive a manual reel with 50m of ½” filling hose and a manual high-pressure reel with 50m of 3/8” hose — perfect for both filling and cleaning operations.

6. Does it require external power?
No. The X Skid includes a self-contained battery and charging port, making it fully independent and ready for off-grid operation.

7. What is the maintenance like?
Regular oil checks and filter changes will keep the system running at peak performance. The design prioritises easy access to service components.

8. Is it suitable for drone cleaning?
Yes. The consistent pressure output and flexible hose setup make it compatible with drone-based cleaning systems for high-level or hard-to-reach surfaces.

🛠️ How to Order

1. Contact our sales team to discuss your requirements.

2. Select your tank size and optional diesel boiler upgrade.

3. Receive your fully assembled X Skid, complete with hose reels and fixing kit.

4. Install easily and start cleaning with professional power.

📞 Call or email XLINE Systems today to configure your ideal setup or request your custom quote.

🔹 XLINE X Skid – The Power Behind Every Professional Clean

Compact. Modular. Ready for anything.
Built for professionals who demand power, precision, and total flexibility.
