Images are for illustration purposes and may not reflect the exact spec or size of this product/system.

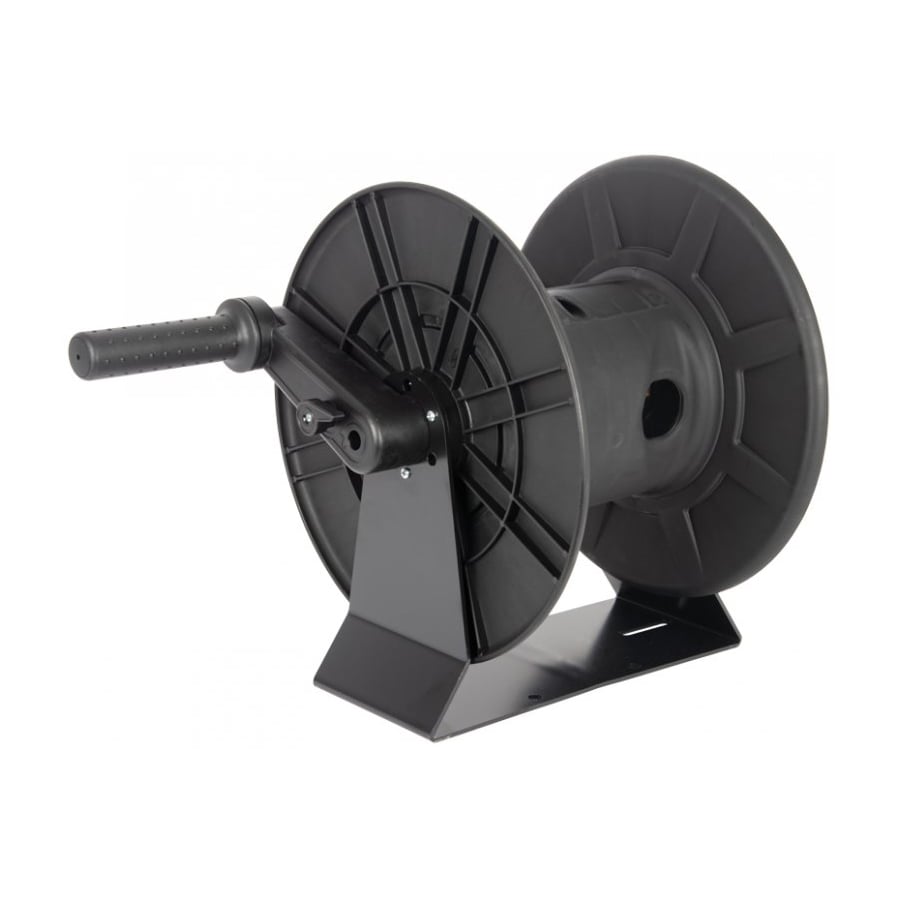

Manual High Pressure Hose Reel 20mtr Capacity
Manual Thermoplastic bolt down reel available on its own or with 20mtr of high pressure hose
£239.00
ex VAT
- Description
- Additional information
Description
Bolt down Manual hose reel made from thermoplastic available a as a bare unit or with the option of 20mtr high pressure hose
Hose Reel Specification
- 20m capacity – 3/8″ 1 wire hose
- 250 Bar max pressure
- 40 Lpm max flow
- 150°C rated temperature
- Hose not included
- Thermoplastic reel
- Brass swivels – Steel bracket
- 3/8″BSPM inlet
- 3/8″BSPM outlet
- 175W x 330H (mm)
Hose Specification
- 20m – 1 wire rubber hose
- 250 Bar rated pressure
- 1x 3/8″BSPF thread port
- 1x 3/8″BSPM thread port
- 150°C max temperature
Additional information
| Weight | 3 kg |
|---|---|
| Dimensions | 37 × 33 × 33 cm |
