Description

Product Description:

**Antenna Points down on this product, designed for use with our 45ltr trolley system. We also supply a controller with the antenna pointed up if needed**

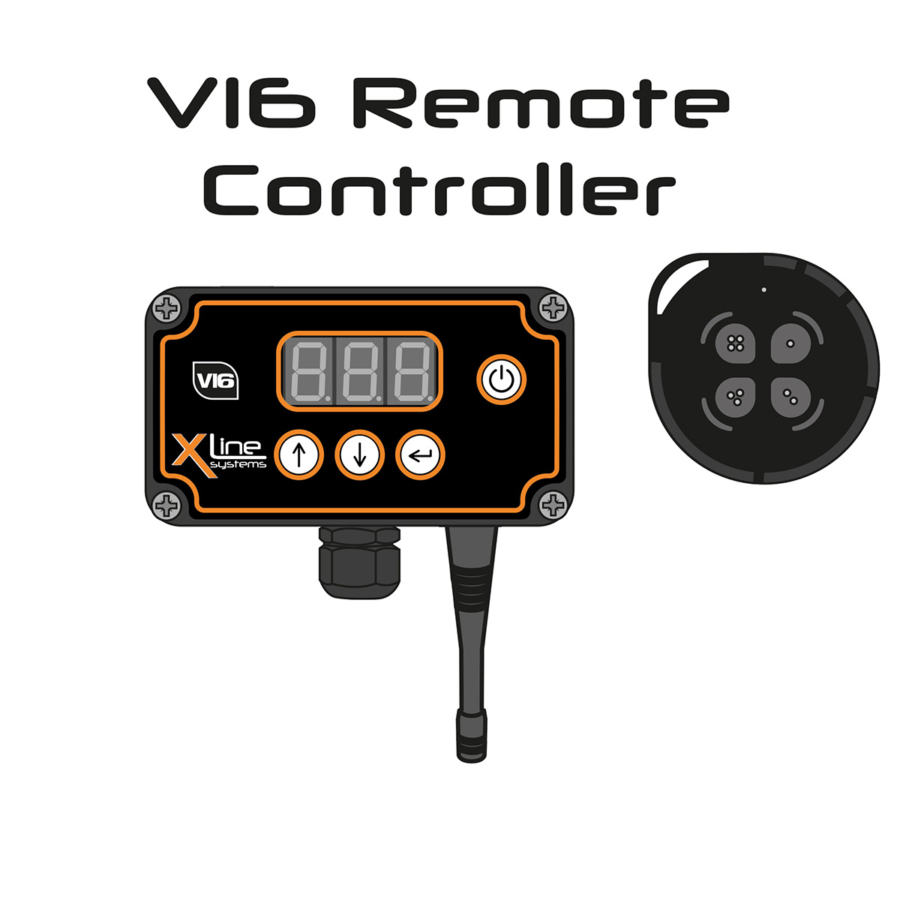

The V16 Basic with Built in Radio Remote is designed for controlling standard current pumps of up to 15A (peak) powered by +12v Leisure Battery.

Allows you to vary the pump flow rate from 0-100%.

Separate On Off Button

4 Button Cell Powered Radio Remote Fob, allows you to switch on the unit, stop and start water flow and increase and decrease the flow of water to the pole in increments of 10

Pump Protection

Polarity Protection

Automatically pauses the flow when dead-end (eg from a pole valve) is detected and restarts it when dead end has been removed.

Indicates When the pressure switch on the pump has been activated

Indicates the battery condition (voltage)

The most advanced and yet simple to use digital pump controller on the market. Features include:

• Copes easily with demanding daily use
• Controls water flow accurately (0-99) and dependably
• Auto calibration
• Auto flow adjustment
• Built in voltmeter
• Smart battery management
• Auto dead end (DE) detection
• Auto battery cut off, prevents permanent battery damage
• Works with any hose or microbore
• Works with pump pressure switch for additional system protection
• Micro DE retesting – no system pressure build when used with pressure switch (V16 version)
• Low Battery Cut off disable feature ( V16 Digital controls)
• Extends the life of pump and battery
• Reduces water use
• Extends life of resin and filters
• Unit is sealed to IP64, stopping water ingress
• Easy to use and simple to install

Dead End detection detects when the water is restricted (i.e. the pole has been disconnected from the hose) and safely shuts down the pump, further reducing power consumption and wear. Simply reconnect the pole and the pump will start up again.

Fine control of flow rate means water use is kept to a minimum, allowing you to complete more jobs on the same tank, as well as being eco friendly.

Less water means less resin, extending the use of your cartridges.

The 3 button interface is simple and intuitive to use. Battery voltage is available at the touch of a button.

Electrical Specification Value

• Voltage 7-18V
• Maximum drive current 10A
• Typical drive currrent 2-3A
• Working temperature -5 to 40C

Mechanical Specification

• Enclosure material ABS
• Water resistance IP64
• Dimensions mm 115x65x40
• Voltmeter accuracy +/- 200mV
