Description

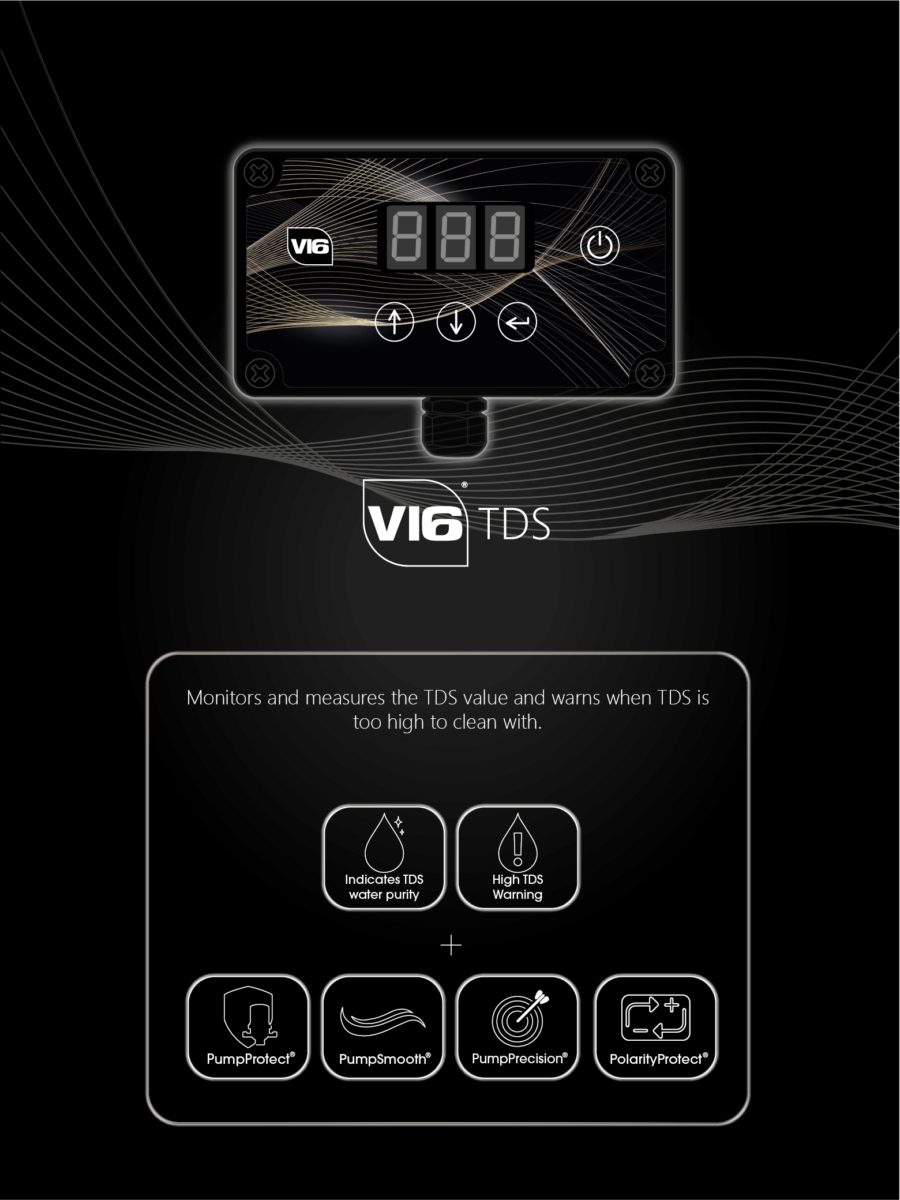

The V16 TDS is designed for controlling standard current pumps of up to 15A (peak) powered by +12v Leisure Battery. Allows you to vary the pump flow rate from 0-100%. Seperate On Off Button Pump Protection Polarity Protection Automatically pauses the flow when dead-end (eg from a pole valve) is detected and restarts it when dead end has been removed. Indicates When the pressure switch on the pump has been activated Indicates the battery condition (voltage) The most advanced and yet simple to use digital pump controller on the market. Features include: Copes easily with demanding daily use Controls water flow accurately (0-99) and dependably Auto calibration Auto flow adjustment Built in voltmeter Smart battery management Auto dead end (DE) detection Auto battery cut off, prevents permanent battery damage Works with any hose or microbore Works with pump pressure switch for additional system protection Micro DE retesting – no system pressure build when used with pressure switch (V16 version) Low Battery Cut off disable feature ( V16 Digital controls) Extends the life of pump and battery Reduces water use Extends life of resin and filters Unit is sealed to IP64, stopping water ingress Easy to use and simple to install Dead End detection detects when the water is restricted (i.e. the pole has been disconnected from the hose) and safely shuts down the pump, further reducing power consumption and wear. Simply reconnect the pole and the pump will start up again. Fine control of flow rate means water use is kept to a minimum, allowing you to complete more jobs on the same tank, as well as being eco friendly. Less water means less resin, extending the use of your cartridges. The 3 button interface is simple and intuitive to use. Battery voltage is available at the touch of a button.

• Provides accurate and easy reading of your water TDS
• Easy to use and simple to install
• Copes easily with demanding daily use
• Extends life of resin cartridges
• Controls water flow accurately (0-99) and dependably
• Advanced micro Dead End detection and retesting
• Accurate battery voltage testing
• Low battery cut off override function
• Unit is sealed to IP65, stopping water ingress
• Supplied with full wiring kit, fuses and fuse holders, solenoid valve, and full instructions

The TDS controller provides two useful features:

1. Monitoring of Total Dissolved Solids in the water
2. Monitoring Water temperature

This controller can be used to measure your TDS in line, either after the RO or after the DI vessel. There is no need to use a hand held meter as the controller display can be quickly switched to display TDS. The controller comes with all the market leading functionality of our standard digital controller. TDS functions can also be added to a Filling and flush controller

To check the purity of the water before it gets to your tank fit probe after the DI vessel. To check the purity of the water before it reaches the glass fit the probe after the pump but before the hose.

The probe will also monitor water temperature and can be used with a water heater in a hot water system.

Note: This control does not have frost protection: Should you want a controller that will provide frost protection and full heater control we would recommend the hot water controller, or a combined Hot Water+TDS controller.

Electrical Specification Value Voltage 7-18V Maximum drive current 10A Typical drive currrent 2-3A Working temperature -5 to 40C Mechanical Specification Enclosure material ABS Water resistance IP64 Dimensions mm 115x65x40 Voltmeter accuracy +/- 200mV
