🚿 XLINE High Pressure Softwash Mixing Skid System

Precision Cleaning. Maximum Control. Fully Remote.

The XLINE High Pressure Softwash Mixing Skid is a next-generation chemical control and cleaning delivery system designed for professional exterior cleaners who demand power, precision, and flexibility.

Whether you’re cleaning roofs, façades, render, driveways, or performing drone-based cleaning, this all-in-one skid provides total control over chemical mixing, water flow, and softwash or high-pressure operation — all managed via long-range intelligent remote control.

⚙️ Softwash Mixing Skid – Precision Chemical Mixing & Remote Operation

Designed for serious professionals, the Softwash Mixing Skid offers real-time chemical mixing and safe, accurate delivery for all softwashing applications.

Operators can blend bleach (SH), surfactant/soap, neutraliser, and water with laboratory-level precision — ensuring consistent performance and surface-safe cleaning every time.

Key Features

🎯 Precision Chemical Control
Advanced metering valves allow exact chemical ratios for uniform results across every clean.

🧴 Multi-Chemical Compatibility
Mix and deliver bleach, surfactant, and neutraliser — compatible with both purified and standard water systems.

📡 Fully Remote Operation

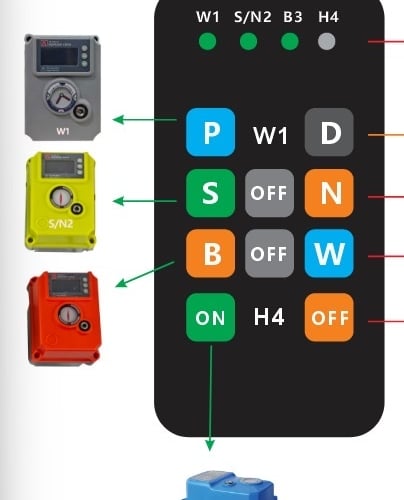

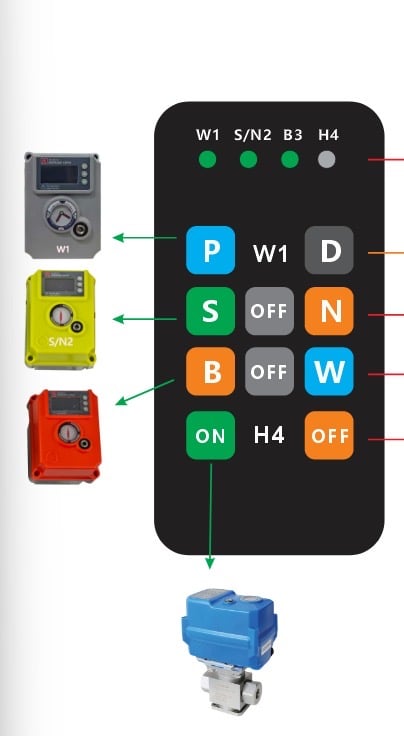

10-button intelligent radio remote with full control up to 200 metres away.

⚙️ Remote-Controlled Functions Include:

• Switching between purified or standard water (split-tank systems)

• Activating/deactivating bleach, surfactant, or neutraliser

• Triggering automatic self-clean flush to rinse pumps and valves

🧠 Integrated Safety Systems

• Shut-off ball cocks to prevent leaks and overfills

• Three-way valve filling for safe, spill-free transfers

🚿 Built-In Transfer Pump
High-flow 12V transfer pump for quick refilling from drums or containers.

🧩 Chemical Storage & System Layout

• 100L Wheel-Arch Bleach Tank – space-efficient and balanced

• 100L Wheel-Arch Soap/Surfactant Tank – stable and accessible

• 60L Neutraliser Tank – reconfigurable for alternative chemical use

🔄 Washdown & Self-Clean System

After each job, activate self-clean flush mode to automatically rinse all internal components — preventing chemical buildup and corrosion.
This feature extends the system’s lifespan and ensures trouble-free operation between uses.

🔧 Hose Reels & Delivery

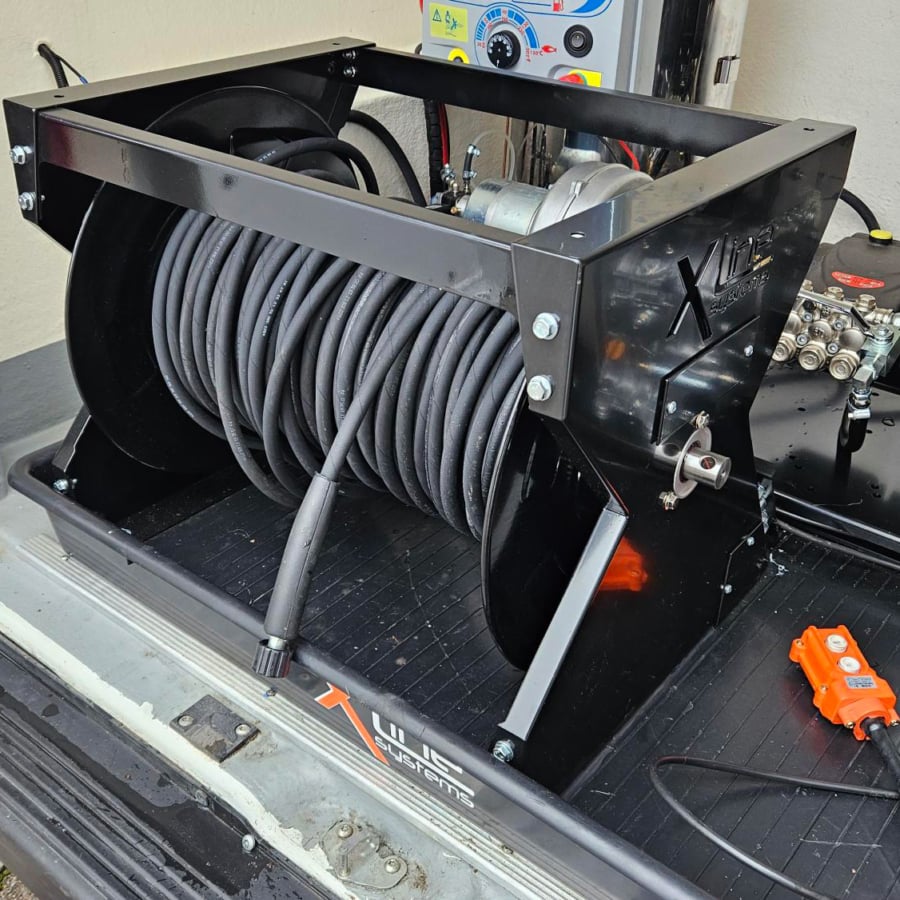

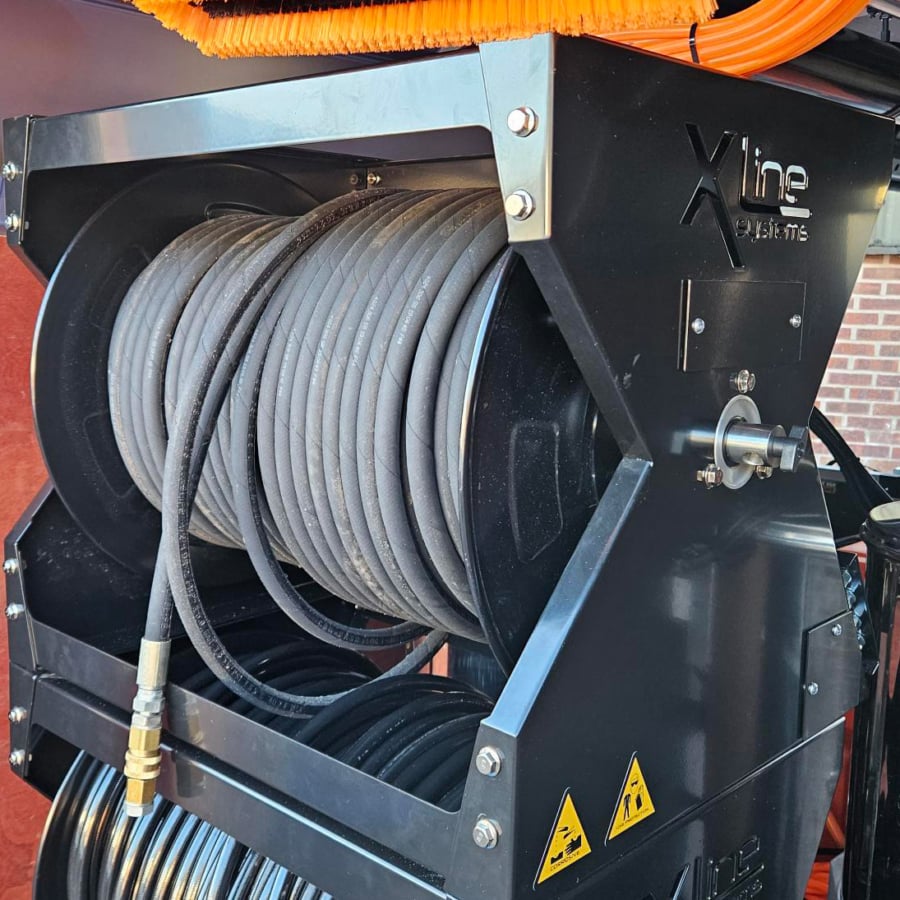

• 100m of ½” high-pressure hose on wide electric reel

• 75m of 3/8” lightweight Flexzilla hose – ideal for drone cleaning

• High-flow delivery pump ensures stable output across all operations

🌟 Why Choose the Softwash Mixing Skid

✅ Remote chemical and water control — no need to return to your vehicle
✅ Instantly switch between wash, rinse, and neutralise modes
✅ Built-in self-clean reduces downtime and maintenance
✅ Compact footprint — fits easily into vans or trailers
✅ Designed for roof, render, façade, and drone cleaning

💪 XLINE High Pressure Skid System – Power Meets Precision

When you need more muscle, pair your softwash skid with the XLINE High Pressure Skid System — combining petrol engine power, diesel boiler heating, and precision water control in one modular unit.

Compact, Powerful & Ready to Work

• Width: 1100 mm (fits standard van wheel arches)

• Tank Sizes: 350 L to 1000 L options

• Optional Diesel Boiler: Water heating over 100°C

• Quick Bolt-On Installation: Preassembled with fixing kit

Engine, Pump & Boiler Highlights

• JCB 457cc 15HP Petrol Engine with electric start

• Flow Rate: Up to 15 L/min

• Pressure: Up to 250 Bar

• Optional Diesel Boiler: With digital temperature control and 50L tank

• Battery: 110Ah self-contained with charger

🎛️ Integrated Control Panel

• Battery voltage display + USB port

• Engine hour meter

• Pressure gauge

• Digital temperature & fuel displays (boiler option)

• Built-in LED work lighting

🧱 Build Quality & Design

• Powder-coated steel frame with anti-vibration mounts

• Modular baffled tank with sight glass & auto shut-off

• Forklift-ready base for easy loading and installation

• Expandable — add softwash or pure-water modules anytime

💼 Why Choose the XLINE High Pressure & Softwash Skid Package

✅ Future-proof modular design for system expansion
✅ Dual cleaning capability — pressure + softwash in one setup
✅ Compact, mobile, and professional-grade
✅ Ideal for roof, façade, and drone cleaning
✅ Fully self-contained — no external power required

📞 Get Started Today

Upgrade your cleaning business with the XLINE High Pressure Softwash Mixing Skid System — engineered for professionals who demand precision, power, and total control.

👉 Contact XLINE Systems today to configure your perfect setup or order your ready-built skid package.

❓ Frequently Asked Questions (FAQ)

Q1: What’s the difference between the softwash and high-pressure skid systems?
The softwash skid is designed for low-pressure chemical cleaning using precise metering and remote control.
The high-pressure skid delivers up to 250 Bar for tougher cleaning tasks. Both can be integrated into one system.

Q2: Can I control the system remotely?
Yes. The intelligent radio remote offers full control of flow, chemical mix, and flush functions up to 200 metres away.

Q3: What chemicals can I use?
The system supports sodium hypochlorite (bleach), surfactant, neutraliser, and purified or tap water. All components are corrosion-resistant.

Q4: Is it compatible with drone cleaning setups?
Absolutely. The lightweight hoses and remote control make it ideal for drone-assisted high-access cleaning.

Q5: How does the self-clean function work?
After each use, simply activate the flush mode via remote to rinse internal pumps and lines — preventing chemical buildup or corrosion.

Q6: What vehicles can it fit into?
At 1100mm wide, it fits between most standard van wheel arches or trailers. It includes a complete fixing kit for quick installation.

Q7: Is the system expandable?
Yes. Add-ons like pure-water filtration, extra tanks, or cleaning modules can be bolted on at any time.

Q8: Does it need external power?
No. The skid includes a self-contained battery and charging system, with optional 12V charging for long-term use.

Q9: How do I order or customise a setup?
Contact XLINE Systems to choose your tank sizes, boiler options, hose configurations, and accessories — all tailored to your workflow.

💧 XLINE High Pressure Softwash Mixing Skid System

Smart. Safe. Fully Controlled.

Built for professionals who demand total control and flawless performance in every clean.
